Artificial head binaural recording and acoustical measurements

A soft artificial ear is easy to assemble so calibration can be done easily. The electroacoustic signal output from the 2 matched microphones is very stable. Microphones comply with IEC61072-1 standard.

ModelPAH-01
Built-in microphone modelPMP27
Microphone directivityOmnidirectional
Sensitivity-36dB re 1V at 1
Pa
Frequency Range20Hz — 20000Hz
Impedance2.2KΩ
Maximum input sound
pressure level (
3% THD
@ 1KHz
)
155dB
0dB SPL = 2 ×
10-5Pa
)
Signal to noise
ratio
(rel. 94 dB SPL)
72 dB
Noise floor22 dBA
Power supply48V phantom
power
Connector3 pin XLR

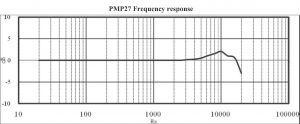

Microphone sensitivity:

Artificial Head microphone sensitivity

Artificial Head microphone sensitivityHRTF (Head-related transfer function)

values are shown here below:

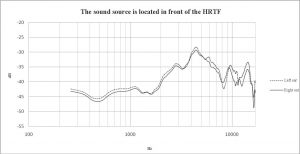

HRTF Graph Artificial head front

HRTF Graph Artificial head front

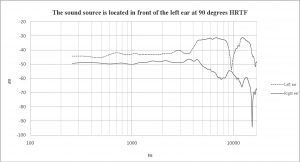

HRTF Graph Artificial head left 90 degrees

HRTF Graph Artificial head left 90 degrees

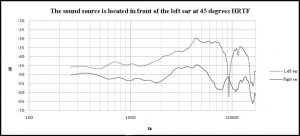

HRTF Graph Artificial head left 45 degrees

HRTF Graph Artificial head left 45 degrees

For more info please contact us.
